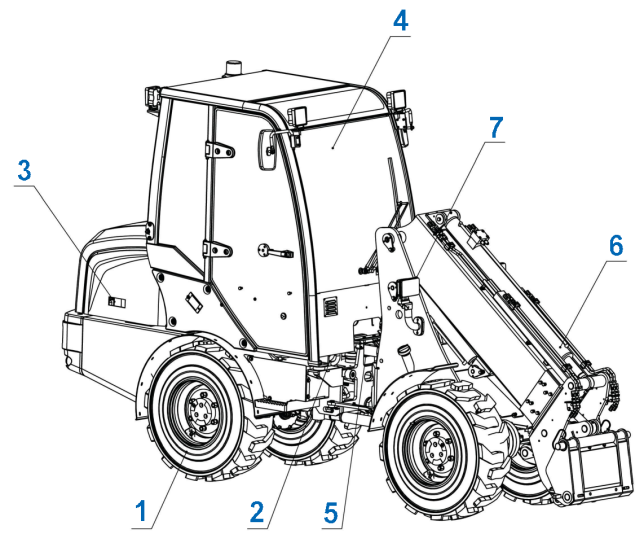

Wheel loader assembly
| Wheel loader assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-100000-000 | Transmission system | 1 | |
| 2 | 850-200000-000 | Steering system | 1 | |
| 3 | 850T-300000-200 | Power system (2403 E5) | 1 | |
| 4 | 850T-400000-200 | Vehicle system (V2403 E5) | 1 | |
| 5 | 850-500000-200 | Operate system (2403 E5) | 1 | |
| 6 | 850T-600000-200 | Hydraulic system (2403 E5) | 1 | |
| 7 | 850T-700000-200 | Electric system (2403 E5) | 1 | |
Transmission system
ContentTransmission system assembly
| Transmission system parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-110000-000 | Rear axle assembly | 1 | |
| 2 | 850-120000-000 | Front axle assembly | 1 | |
| 3 | 850-181000-500 | Left tyre assembly (11.5/80-15.3) | 2 | |
| 4 | 850-182000-500 | Right tyre assembly (11.5/80-15.3) | 2 | |
| 5 | 850-101000-000 | Transmission axle assembly | 1 | |
| 6 | 850-100004-000 | Transmission axle front subplate | 1 | |
| 7 | 850-100005-000 | Transmission axle rear subplate | 1 | |
| 8 | 006184 010001A | Metallic hexagon lock nut M10 | 8 | |
| 9 | 005783 200702A | Hexagon head bolts with full thread M20×70-10.9 | 16 | |
| 10 | 000971 000201A | Flat washer 20 | 16 | |
| 11 | 850-100001-000 | Hinge bolt | 12 | |
| 12 | 000093 000201A | Standard elastic washer 20 | 16 | |
| 13 | 006170 020001A | Hexagon nut M20 | 16 | |

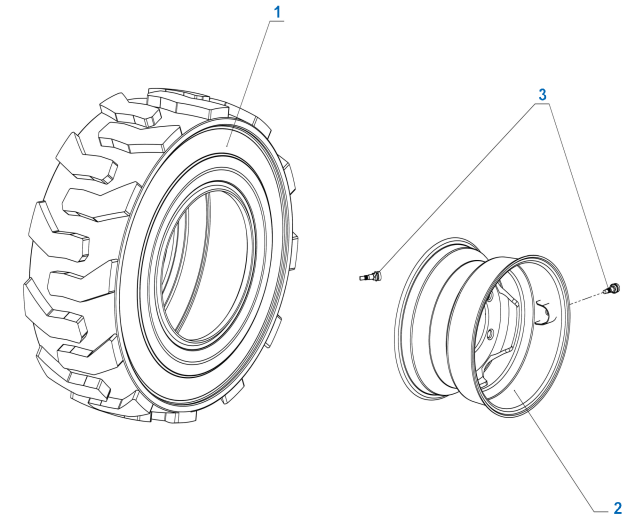

Tyre assembly
| Tyre assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-181200-G00 | Tyre 11.5-80-15.3 | 1 | |
| 2 | 850-180100-G00 | Rim assembly 9.00x15.3 | 4 | |
| 3 | 1230-181001-500 | Straight valve core 3501 | 2 | |

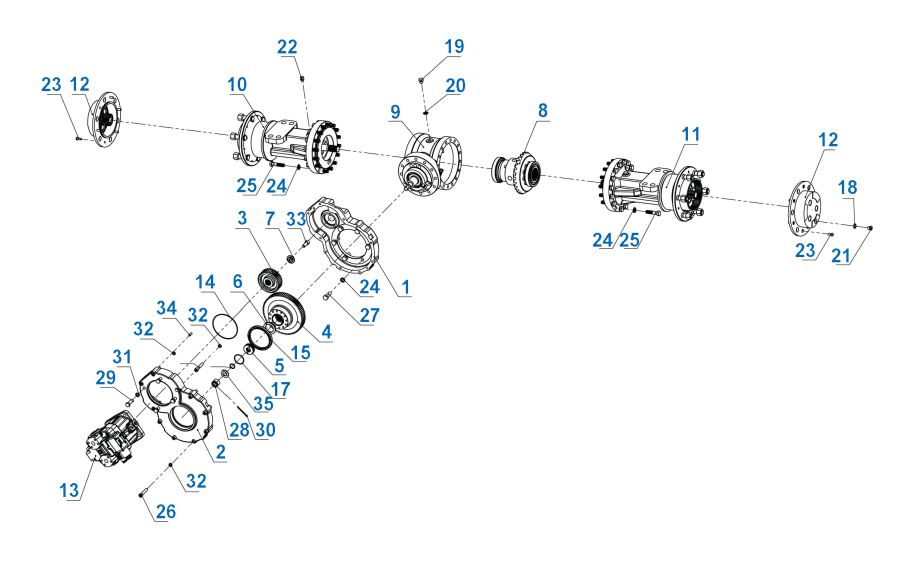

Rear axle assembly
| Rear axle assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-110001-000 | Tank 2 | 1 | |
| 2 | 850-110002-000 | Tank 1 | 1 | |
| 3 | 850-110003-G00 | Pinion | 1 | |
| 4 | 850-110004-G00 | Bull gear | 1 | |
| 5 | 850-110006-000 | Pressing sleeve | 1 | |
| 6 | 850-110007-000 | Washer | 1 | |
| 7 | 850-110010-001 | Gasket | 1 | |
| 8 | 850-111000-000 | Differential assembly | 1 | |
| 9 | 850-112000-000 | Axle shell components | 1 | |
| 10 | 850-113000-000 | Sleeving assembly (left) | 1 | |
| 11 | 850-114000-000 | Sleeving assembly (right) | 1 | |
| 12 | 850-115000-000 | Wheel hub reducer | 2 | |
| 13 | 850-104000-G00 | Double speed motor | 1 | |
| 14 | 034529 220265A | O-ring 122x2.65 | 1 | |
| 15 | 138711 10012012F | Fluorine glue oil seal 100x120x12 | 1 | |
| 16 | 034521 200265A | O-ring 20*2.65 | 1 | |
| 17 | 034521 437265A | O-ring 43.7*2.65 | 1 | |
| 18 | 034521 200350A | O-ring 20x3.5 | 2 | |
| 19 | 001000 000141A | Hexagon plug M14*1.5 | 3 | |
| 20 | 000982 000014A | Combination sealing gasket 14 | 3 | |
| 21 | 004444 000141A | Hexagon socket plug M14*1.5 | 2 | |
| 22 | 1230-110021-G10 | Vent valve M8*1 | 1 | |
| 23 | 000702 080202A | Screw M8x20-10.9 | 12 | |
| 24 | 000093 000141A | Standard elastic washer 14 | 38 | |
| 25 | 005782 140602A | Hexagon head bolt M14x60-10.9 | 32 | |
| 26 | 000701 100553A | Hexagon socket head screw M10×55-12.9 | 10 | |
| 27 | 005783 140402A | Hexagon head bolt full thread M14×40-10.9 | 6 | |
| 28 | 009457 020002A | Nut M20*1.5 | 1 | |
| 29 | 005783 120401A | Hexagon head bolt full thread M12×40-8.8 | 4 | |
| 30 | 000091 040501A | Cotter pin 4 x 50 | 1 | |
| 31 | 000093 000121A | Standard elastic washer 12 | 4 | |
| 32 | 000093 000101A | Standard elastic washer 10 | 10 | |
| 33 | 000701 120301A | Hexagon socket socket head screw M12×30-8.8 | 1 | |
| 34 | 000119 080201A | Pin 8×20 | 2 | |
| 35 | 000971 000201A | Flat washer 20 | 1 | |

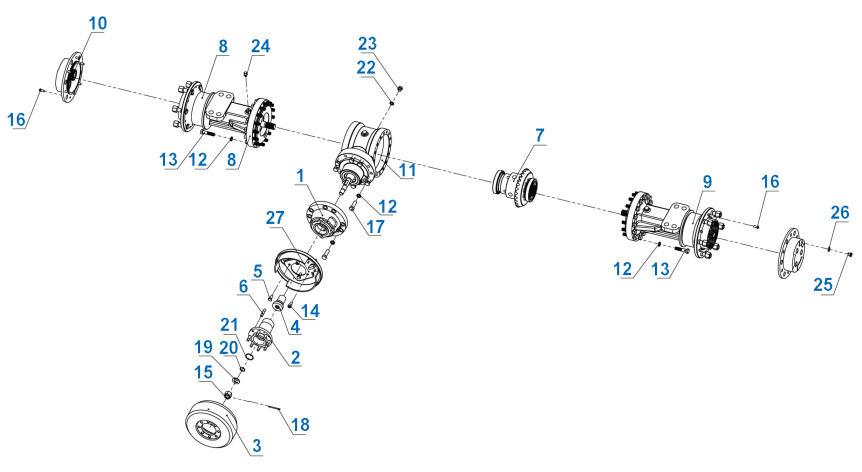

Front axle assembly
| Front axle assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-120001-000 | Connecting base | 1 | |
| 2 | 850-120002-G00 | Connecting sleeve | 1 | |
| 3 | 1230-120002-G20 | Brake drum | 1 | |
| 4 | 850-120003-000 | Pressing sleeve | 1 | |
| 5 | 850-120005-G00 | Hinged bolts M10x20-10.9 class | 2 | |
| 6 | 1230-120006-010 | Stud | 8 | |
| 7 | 850-111000-000 | Differential assembly | 1 | |
| 8 | 850-113000-000 | Sleeving assembly (left) | 1 | |
| 9 | 850-114000-000 | Sleeving assembly (right) | 1 | |
| 10 | 850-115000-000 | Wheel hub reducer | 2 | |
| 11 | 850-121000-000 | Axle shell components | 1 | |
| 12 | 000093 000141A | Standard elastic washer 14 | 46 | |
| 13 | 005782 140602A | Hexagon head bolt M14x60-10.9 | 32 | |
| 14 | 000701 100201A | Hexagon socket socket head screw M10×20-8.8 | 2 | |
| 15 | 009457 020002A | Nut M20*1.5 | 1 | |
| 16 | 000702 080202A | Screw M8x20-10.9 | 22 | |
| 17 | 005783 140452A | Hexagon head bolt full thread M14×45-10.9 | 14 | |
| 18 | 000091 040501A | Cotter pin 4×50 | 1 | |
| 19 | 000971 000201A | Flat washer 20 | 1 | |
| 20 | 034521 200265A | O-ring 20*2.65 | 1 | |
| 21 | 034521 345265A | O-ring 34.5*2.65 | 1 | |
| 22 | 000982 000014A | Combined sealing gasket 14 | 3 | |
| 23 | 001000 000141A | Hexagon plug M14*1.5 | 3 | |
| 24 | 1230-110021-G10 | Vent valve M8*1 | 1 | |
| 25 | 004444 000141A | Hexagon screw plug M14*1.5 | 2 | |
| 26 | 034521 200350A | O-ring 20x3.5 | 2 | |
| 27 | 1230-121000-G20 | Hand brake assembly | 1 | |
Wheel hub reducer
| Wheel hub reducer parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-115001-G00 | Planet carrier | 1 | |
| 2 | 850-115002-000 | Half shaft copper pad | 1 | |
| 3 | 012350 156200A | O-ring 156x2.0 | 1 | |
| 4 | 008941 000241A | Circlip for shaft 24 | 3 | |
| 5 | 850-115100-G00 | Planetary gear assembly | 3 | |
Differential assembly
| Differential assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-111001-000 | Outer shell | 1 | |
| 2 | 850-111002-000 | Axle shaft gear thrust washers | 2 | |
| 3 | 850-111003-G00 | Axle gear I | 1 | |
| 4 | 850-111004-000 | Long pin | 1 | |
| 5 | 850-111005-G00 | Planetary gear | 4 | |
| 6 | 850-111006-G00 | Axle gear II | 1 | |
| 7 | 850-111007-G00 | Planetary gear thrust washer | 4 | |
| 8 | 850-111008-G00 | Differential gear | 1 | |
| 9 | 850-111009-G00 | Connection sleeve | 1 | |
| 10 | 850-111010-000 | Short pin | 2 | |
| 11 | 850-111011-000 | Differential gear positioning pin | 5 | |
| 12 | 000297 030215A | Tapered roller bearings 32015 | 2 | |
| 13 | 000117 060501A | Taper pin A type 6*50 | 3 | |
| 14 | 000701 100303A | Hexagon socket head screw M10×30-12.9 | 10 | |

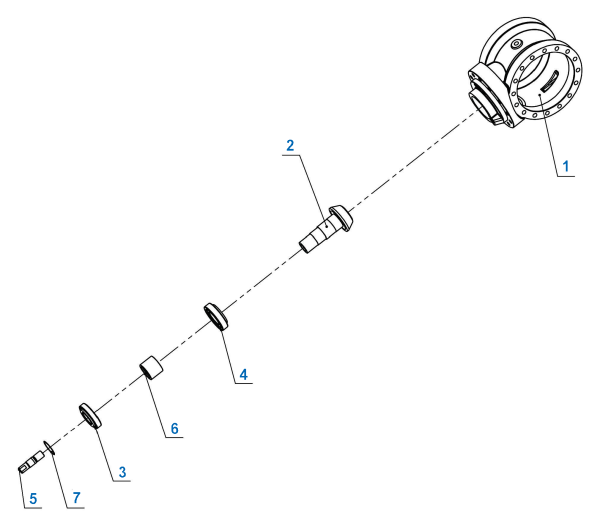

Axle housing component
| Axle housing component parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-112001-000 | Differential housing | 1 | |
| 2 | 850-112002-G00 | Conch umbrella | 1 | |
| 3 | 000297 030208A | Tapered roller bearings 30208 | 1 | |
| 4 | 000297 032209A | Tapered roller bearings 32209 | 1 | |
| 5 | 850-112003-000 | Fastening bolt | 1 | |
| 6 | 850-111014-000 | Set | 1 | |
| 7 | 850-111013-000 | Gasket | 1 | |

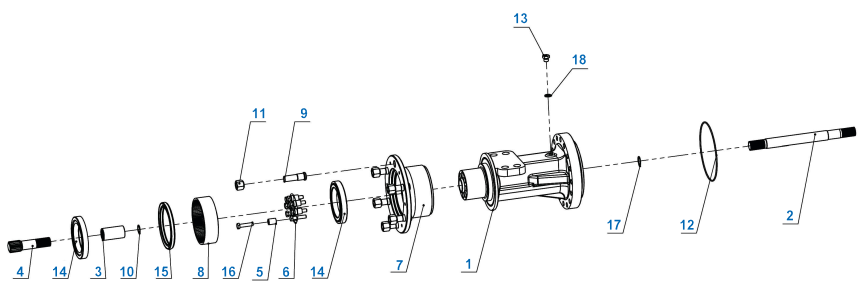

Sleeve assembly (left)
| Sleeve assembly (left) parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-113001-000 | Sleeve | 1 | |
| 2 | 850-113004-G00 | Transmission shaft | 1 | |
| 3 | 850-113005-G00 | Spline bushing | 1 | |
| 4 | 850-113006-G00 | Center axle | 1 | |
| 5 | 850-113007-000 | Locating shaft | 8 | |
| 6 | 850-113008-000 | Wheel bearing adjusting washer | 1 | |
| 7 | 850-113009-000 | Bearing seat | 1 | |
| 8 | 850-113010-G00 | Ring gear | 1 | |
| 9 | 850-113011-G00 | Tire bolt | 6 | |
| 10 | 008931 000251A | Circlip for hole25 | 1 | |
| 11 | 1230-110020-G10 | Hub nut | 6 | |
| 12 | 012350 180310A | O-ring 180x3.1 | 1 | |
| 13 | 1230-110019-G10 | Screw plug M14x1.5 | 1 | |
| 14 | 819349 09513520 | Tapered roller bearings JL819349 | 2 | |
| 15 | 138711 12015012 | Lip seal 120*150*12 | 1 | |
| 16 | 005783 100452A | Hexagon head bolts full thread M10x45-10.9 | 8 | |
| 17 | 008941 000251A | Circlip for shaft 25 | 1 | |
| 18 | 000982 000014A | Combined sealing gasket 14 | 1 | |
Sleeve assembly (right)
| Sleeve assembly (right) parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-113001-000 | Sleeve | 1 | |
| 2 | 850-113004-G00 | Transmission shaft | 1 | |
| 3 | 850-113005-G00 | Spline bushing | 1 | |
| 4 | 850-113006-G00 | Center axle | 1 | |
| 5 | 850-113007-000 | Locating shaft | 8 | |
| 6 | 850-113008-000 | Wheel bearing adjusting washer | 1 | |
| 7 | 850-113009-000 | Bearing seat | 1 | |
| 8 | 850-113010-G00 | Ring gear | 1 | |
| 9 | 850-113011-G00 | Tire bolt | 6 | |
| 10 | 850-114001-000 | Piston | 1 | |
| 11 | 850-114002-G00 | Combine teeth | 1 | |
| 12 | 850-114003-G00 | Differential lock spring | 1 | |
| 13 | 1230-110020-G10 | Hub nut | 6 | |
| 14 | 004605 04006005 | Thrust needle roller bearings 889108 | 1 | |
| 15 | 005783 100452A | Hexagon head bolts full thread M10x45-10.9 | 8 | |
| 16 | 819349 09513520 | Tapered Roller Bearings JL819349 | 2 | |
| 17 | USH000 06007006 | Oil seal 60x70x6 | 1 | |
| 18 | USH000 07008006 | Oil seal 70*80*6 | 1 | |
| 19 | 008941 000251A | Circlip for shaft 25 | 1 | |
| 20 | 012350 180310A | O-ring 180x3.1 | 1 | |
| 21 | 138711 12015012 | Lip seal 120*150*12 | 1 | |
| 22 | 000982 000014A | Combined sealing gasket 14 | 1 | |
| 23 | 008931 000251A | Circlip for hole 25 | 1 | |
| 24 | 001000 000141A | Hexagon plug M14*1.5 | 1 | |

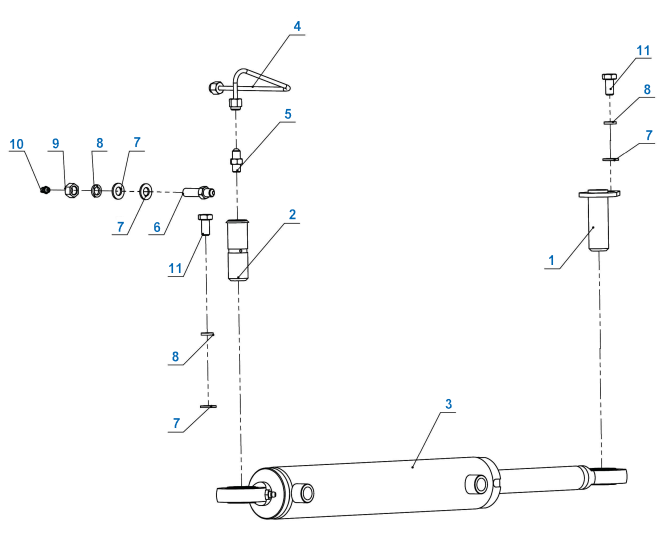

Steering system
| Steering system parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1130-200100-000 | Pin shaft assembly | 1 | |
| 2 | 1130-200200-000 | Pin shaft assembly | 1 | |
| 3 | 850-201000-G00 | Steering cylinder component | 1 | |
| 4 | 850-615100-G00 | Grease tube for steering pin | 1 | |
| 5 | 1130-650001-000 | Straight joint (pin side) | 1 | |
| 6 | 1130-650002-000 | Straight joint (refueling end) | 1 | |
| 7 | 000971 000101A | Flat washer 10 | 4 | |
| 8 | 000093 000101A | Standard elastic washer 10 | 3 | |
| 9 | 006170 010001A | Hex nut M10 | 1 | |
| 10 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 1 | |
| 11 | 005783 100201A | Hexagon head bolts full thread M10x20-8.8 | 2 | |
Power system
Power system installation assembly
| Power system parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1130-200100-000 | Pin shaft assembly | 1 | |
| 2 | 1130-200200-000 | Pin shaft assembly | 1 | |
| 3 | 850-201000-G00 | Steering cylinder component | 1 | |
| 4 | 850-615100-G00 | Grease tube for steering pin | 1 | |
| 5 | 1130-650001-000 | Straight joint (pin side) | 1 | |
| 6 | 1130-650002-000 | Straight joint (refueling end) | 1 | |
| 7 | 000971 000101A | Flat washer 10 | 1 | |
| 8 | 000093 000101A | Standard elastic washer 10 | 1 | |
| 9 | 006170 010001A | Hex nut M10 | 1 | |
| 10 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 1 | |
| 11 | 005783 100201A | Hexagon head bolts full thread M10x20-8.8 | 1 | |
| 12 | 1130-200100-000 | Pin shaft assembly | 1 | |
| 13 | 1130-200200-000 | Pin shaft assembly | 8 | |
| 14 | 850-201000-G00 | Steering cylinder component | 10 | |
| 15 | 850-615100-G00 | Grease tube for steering pin | 10 | |
| 16 | 1130-650001-000 | Straight joint (pin side) | 2 | |
| 17 | 1130-650002-000 | Straight joint (refueling end) | 4 | |
| 18 | 000971 000101A | Flat washer 10 | 2 | |
| 19 | 000093 000101A | Standard elastic washer 10 | 1 | |
| 20 | 006170 010001A | Hex nut M10 | 1 | |

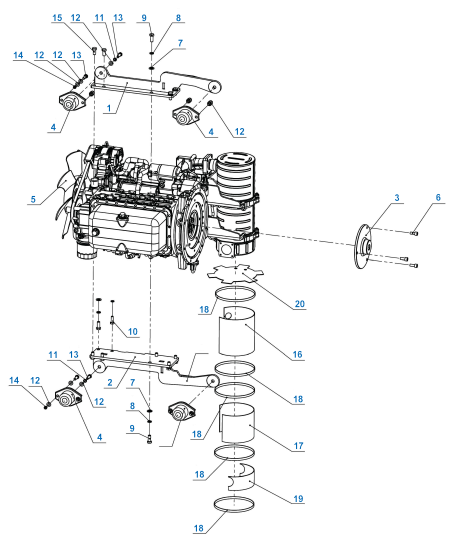

Engine components
| Engine components parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1130-200100-000 | Pin shaft assembly | 1 | |
| 2 | 1130-200200-000 | Pin shaft assembly | 1 | |
| 3 | 850-201000-G00 | Steering cylinder component | 1 | |
| 4 | 850-615100-G00 | Grease tube for steering pin | 4 | |
| 5 | 1130-650001-000 | Straight joint (pin side) | 1 | |
| 6 | 1130-650002-000 | Straight joint (refueling end) | 3 | |
| 7 | 000971 000101A | Flat washer 10 | 11 | |
| 8 | 000093 000101A | Standard elastic washer 10 | 11 | |
| 9 | 006170 010001A | Hex nut M10 | 11 | |
| 10 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 1 | |
| 11 | 005783 100201A | Hexagon head bolts full thread M10x20-8.8 | 5 | |
| 12 | 1130-200100-000 | Pin shaft assembly | 21 | |
| 13 | 1130-200200-000 | Pin shaft assembly | 12 | |
| 14 | 850-201000-G00 | Steering cylinder component | 8 | |
| 15 | 850-615100-G00 | Grease tube for steering pin | 4 | |
| 16 | 1130-650001-000 | Straight joint (pin side) | 1 | |
| 17 | 1130-650002-000 | Straight joint (refueling end) | 1 | |
| 18 | 000971 000101A | Flat washer 10 | 5 | |
| 19 | 000093 000101A | Standard elastic washer 10 | 1 | |
| 20 | 006170 010001A | Hex nut M10 | 1 | |

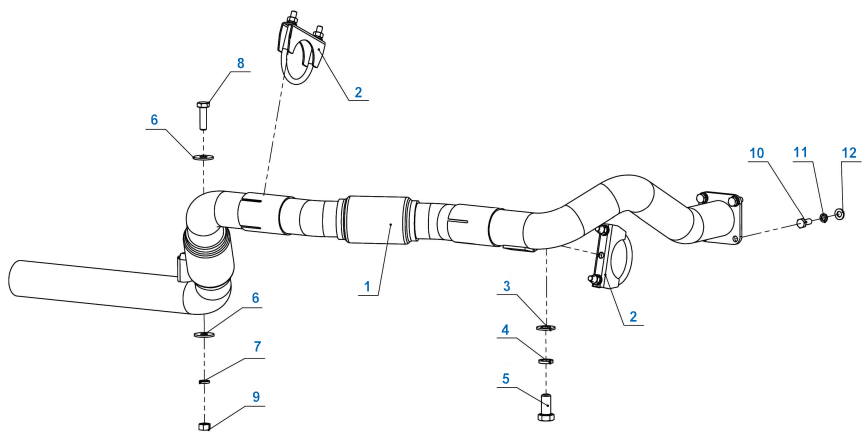

Exhaust system
| Exhaust system parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1130-200100-000 | Pin shaft assembly | 1 | |
| 2 | 1130-200200-000 | Pin shaft assembly | 2 | |
| 3 | 850-201000-G00 | Steering cylinder component | 1 | |
| 4 | 850-615100-G00 | Grease tube for steering pin | 1 | |
| 5 | 1130-650001-000 | Straight joint (pin side) | 1 | |
| 6 | 1130-650002-000 | Straight joint (refueling end) | 2 | |
| 7 | 000971 000101A | Flat washer 10 | 1 | |
| 8 | 000093 000101A | Standard elastic washer 10 | 1 | |
| 9 | 006170 010001A | Hex nut M10 | 1 | |
| 10 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 4 | |
| 11 | 005783 100201A | Hexagon head bolts full thread M10x20-8.8 | 4 | |
| 12 | 1130-200100-000 | Pin shaft assembly | 4 | |
Inlet system
| Inlet system parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1130-200100-000 | Pin shaft assembly | 1 | |
| 2 | 1130-200200-000 | Pin shaft assembly | 2 | |
| 3 | 850-201000-G00 | Steering cylinder component | 1 | |
| 4 | 850-615100-G00 | Grease tube for steering pin | 1 | |
| 5 | 1130-650001-000 | Straight joint (pin side) | 1 | |
| 6 | 1130-650002-000 | Straight joint (refueling end) | 4 | |
| 7 | 000971 000101A | Flat washer 10 | 2 | |
| 8 | 000093 000101A | Standard elastic washer 10 | 2 | |
| 9 | 006170 010001A | Hex nut M10 | 2 | |
| 10 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 2 | |
| 11 | 005783 100201A | Hexagon head bolts full thread M10x20-8.8 | 1 | |
| 12 | 1130-200100-000 | Pin shaft assembly | 1 | |
| 13 | 1130-200200-000 | Pin shaft assembly | 1 | |

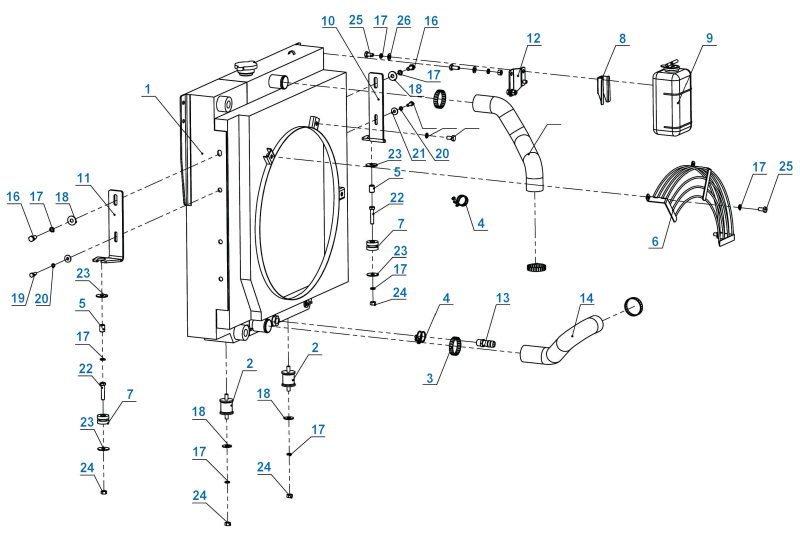

Cooling system
| Cooling system parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-340100-G20 | Water tank assembly (Euro 5) | 1 | |
| 2 | 1130-340001-G00 | Cushion | 2 | |
| 3 | S00045 | Double steel wire clamp 45 | 4 | |
| 4 | S00024 | Double steel wire clamp 24 | 2 | |
| 5 | 1130-340007-G00 | Sleeve | 2 | |
| 6 | 850-340300-000 | Radiator fan cover assembly | 1 | |
| 7 | 1130-340006-G00 | Upper radiator cushion | 2 | |
| 8 | K30000 340004 | Sub-tank bracket assembly | 1 | |
| 9 | K30G00 345000 | Sub-tank 92638340 | 1 | |
| 10 | 850-340004-100 | Left bracket of water tank | 1 | |
| 11 | 850-340005-100 | Right bracket of water tank | 1 | |
| 12 | 850-300003-000 | Sub-tank mounting plate | 1 | |
| 13 | 850-340006-100 | Hot water pipe joint | 1 | |
| 14 | 850-340001-G20 | Down water pipe | 1 | |
| 15 | 850-340005-200 | Warm water pipe joint (Euro 5) | 1 | |
| 16 | 850-340002-G20 | Upper water pipe | 1 | |
| 17 | 005783 080201A | Hexagon head bolts full thread M8x20-8.8 | 4 | |
| 18 | 000093 000081A | Standard elastic washer 8 | 13 | |
| 19 | 000096 080241A | Increase flat washer 8x24 | 4 | |
| 20 | 005783 060201A | Hexagon head bolts full thread M6x20-8.8 | 2 | |
| 21 | 000093 000061A | Standard elastic washer 6 | 2 | |
| 22 | 000096 060181A | Increase flat washer 6x18 | 2 | |
| 23 | 005783 080401A | Hexagon head bolts full thread M8×40-8.8 | 2 | |
| 24 | 000096 080301A | Increase flat washer 8x30 | 4 | |
| 25 | 006170 008001A | Hex nut M8 | 6 | |
| 26 | 005783 080161A | Hexagon head bolts full thread M8x16-8.8 | 5 | |
| 27 | 000971 000081A | Flat washer 8 | 4 | |

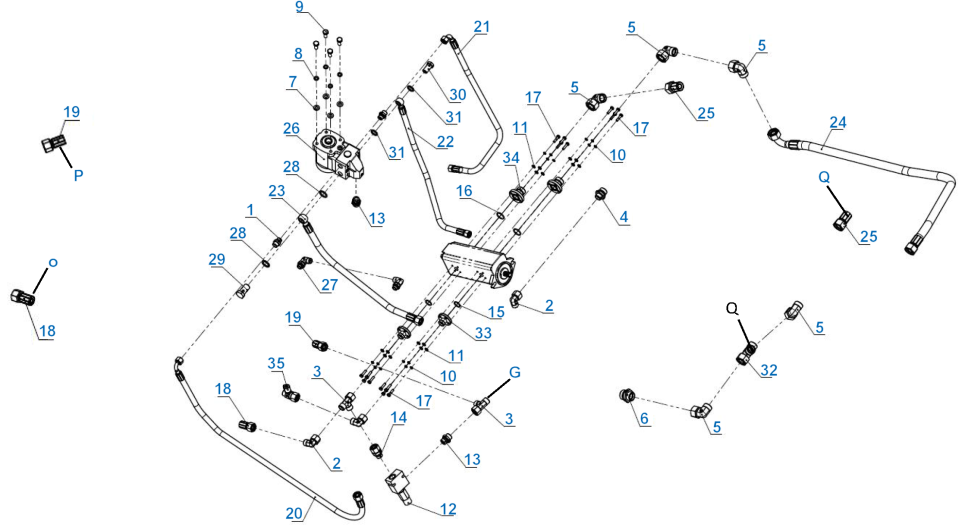

Fuel system
| Fuel system parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1540195693 | Connector | 4 | |
| 2 | 1654195791 | Articulated joint | 4 | |
| 3 | 1710533682 | Washer | 8 | |
| 4 | 1G63952035 | Electronic pump | 1 | |
| 5 | 830-350001-100 | Copper tee φ8 | 1 | |
| 6 | 1J33143012 | Diesel filter | 2 | |
| 7 | 1E78943351 | Oil-water separator | 1 | |
| 8 | 1C01042461 | Oil return check valve | 1 | |
| 9 | 1G91142460 | One way valve | 1 | |
| 10 | 850-350016-200 | Fuel pipe 4 | 1 | |
| 11 | 850-350017-200 | Fuel pipe 5 | 1 | |
| 12 | 850-350011-200 | Oil return pipe 1 | 1 | |
| 13 | 850-350012-200 | Oil return pipe 2 | 1 | |
| 14 | 850-350013-200 | Fuel pipe 1 | 1 | |
| 15 | 850-350014-200 | Fuel pipe 2 | 1 | |
| 16 | 850-350015-200 | Fuel pipe 3 | 1 | |
| 17 | 850-350019-200 | Fuel pipe 7 | 1 | |
| 18 | 850-350018-200 | Fuel pipe 6 | 1 | |
| 19 | 006170 010001A | Hex nut M10 | 2 | |
| 20 | 000093 000101A | Standard elastic washer 10 | 2 | |
| 21 | 000096 100301A | Increase flat washer 10x30 | 2 | |
| 22 | 005783 100301A | Hexagon head bolts full thread M10x30-8.8 | 2 | |
| 23 | 005783 080251A | Hexagon head bolts full thread M8x25-8.8 | 2 | |
| 24 | 000093 000081A | Standard elastic washer 8 | 2 | |
| 25 | 000971 000081A | Flat washer 8 | 2 | |
| 26 | 008870 009016A | Stainless steel hose clamp 9-16 | 13 | |
| 27 | 008870 008012A | Stainless steel hose clamp 8-12 | 4 | |
| 28 | 000971 000061A | Flat washer 6 | 2 | |
| 29 | 000093 000061A | Standard elastic washer 6 | 2 | |
| 30 | 005783 060121A | Hexagon head bolts full thread M6x12-8.8 | 2 | |

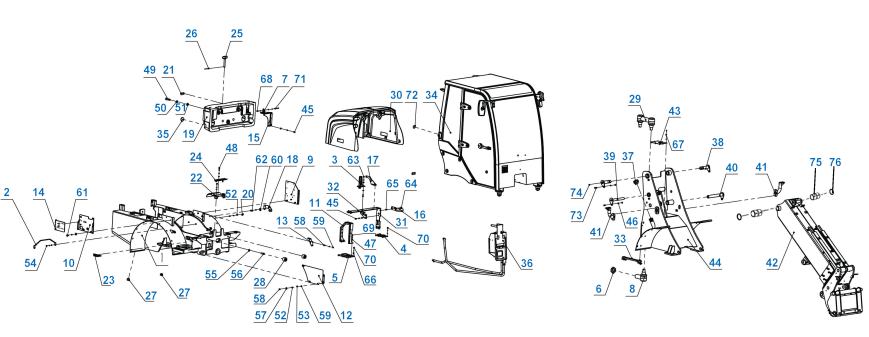

Car body system
Vehicle system assembly
| Vehicle system assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-420000-200 | Rear frame welding | 1 | |
| 2 | 850-400800-100 | Connecting rod assembly | 1 | |
| 3 | 850-400900-200 | Air filter mounting bracket assembly | 1 | |
| 4 | 850-401200-100 | Left fuel tank cover plate assembly (Yanmar) | 1 | |
| 5 | 850-401300-100 | Right fuel tank cover plate assembly | 1 | |
| 6 | 850-400007-000 | Hexagon thin nuts M56x1.5 | 1 | |
| 7 | 875-400012-000 | Tail cover lock core mounting seat plate | 1 | |
| 8 | 850-400100-G00 | One-way spherical hinge assembly | 1 | |
| 9 | 850-400013-200 | ECU Mounting plate | 1 | |
| 10 | 850-400014-100 | Multi-way valve bracket | 1 | |
| 11 | 850-400019-100 | Bridge base on the right | 1 | |
| 12 | 850-400020-100 | Battery shield | 1 | |
| 13 | 850-400021-100 | Brake oil cup bracket | 1 | |
| 14 | 850-400024-100 | Relay mounting plate | 1 | |
| 15 | 850-400026-100 | Tail cover base mounting plate | 1 | |
| 16 | 850-400027-200 | Oil-water separator mounting bracket | 1 | |
| 17 | 850-400029-200 | Air filter side fixing plate | 1 | |
| 18 | 850-400030-200 | Exhaust tail pipe seat mounting plate | 1 | |
| 19 | 850-440006-G10 | Counterweight | 1 | |
| 20 | 850T-434027-003 | Length sensor welding seat | 1 | |
| 21 | 1130-702001-610 | Taillight fixing plate | 2 | |
| 22 | 850-600800-000 | Frame pipe clamp seat | 1 | |
| 23 | 850-420011-000 | Oil filter mounting plate | 1 | |
| 24 | 850-600003-000 | Front pressure plate | 1 | |
| 25 | 1130-440900-000 | Traction bolt | 1 | |
| 26 | 1130-440010-G00 | Elastic split pin (R-shaped card) | 1 | |
| 27 | 004444 00G100A | G1 Plug | 3 | |
| 28 | 1130-400026-000 | Steering shock absorber | 2 | |
| 29 | 850-400200-G00 | Two-way spherical hinge assembly | 1 | |
| 30 | 850-440000-200 | Tail cover assembly components | 1 | |
| 31 | 850-400028-200 | Bridge board | 1 | |
| 32 | 850-400022-200 | Diesel filter mount | 1 | |
| 33 | 850-400008-000 | Safety connecting rod assembly | 1 | |
| 34 | 850T-470000-300 | Cab assembly | 1 | |
| 35 | 8RA.002.014-031 | Retro reflector red | 2 | |
| 36 | 850T-477000-000 | Heating system | 1 | |
| 37 | K30G00 313000 | Fuel cap | 1 | |
| 38 | 850T-430800-001 | Boom pin assembly | 2 | |
| 39 | 850T-430700-001 | Slave cylinder rear pin assembly | 1 | |
| 40 | 850T-430600-001 | Rear pin assembly of lifting cylinder | 1 | |
| 41 | 850-720100-000 | Headlight bracket | 2 | |
| 42 | 850T-430000-000 | Working device assembly | 1 | |
| 43 | 850T-400013-000 | Diesel tank cover | 1 | |
| 44 | 850T-410000-003 | Front frame assembly | 1 | |
| 45 | 005783 100201A | Hexagon head bolts full thread M10x20-8.8 | 12 | |
| 46 | 000093 000101A | 10 Standard elastic washer | 40 | |
| 47 | 000971 000101A | 10 Flat Washers | 34 | |
| 48 | 005783 100401A | Hexagon head bolts full thread M10x40-8.8 | 2 | |
| 49 | 000701 200653A | Hexagon socket head screw M20x65-12.9 | 2 | |
| 50 | 000093 000201A | Standard elastic washer 20 | 2 | |
| 51 | 000971 000201A | Flat Washers 20 | 2 | |
| 52 | 000971 000081A | Flat Washers 8 | 11 | |
| 53 | 000093 000081A | Standard elastic washer 8 | 14 | |
| 54 | 005783 080161A | Hexagon head bolts full thread M8×16-8.8 | 5 | |
| 55 | 000093 000161A | Standard elastic washer | 2 | |
| 56 | 000701 160451A | Hexagon socket head screw M16x45-8.8 | 2 | |
| 57 | 000096 080241A | 8x24 Increase flat pad | 5 | |
| 58 | 005783 080201A | Hexagon head bolts full thread M8x20-8.8 | 9 | |
| 59 | 006170 008001A | Hex nuts M8 | 6 | |
| 60 | 000096 100301A | 10x30 Increase flat pad | 12 | |
| 61 | 005783 100301A | Hexagon head bolts full thread M10×30-8.8 | 14 | |
| 62 | 005783 100351A | Hexagon head bolts full thread M10×35-8.8 | 4 | |
| 63 | 006170 010001A | M10 Hex nuts | 10 | |
| 64 | 000096 060181A | Increase flat washer 6x18 | 2 | |
| 65 | 005783 060251A | Hexagon head bolts full thread M6x25-8.8 | 2 | |
| 66 | 000971 000061A | Flat Washers | 28 | |
| 67 | 000093 000061A | Standard elastic washer 6 | 27 | |
| 68 | 006170 006001A | Hex nuts M6 | 4 | |
| 69 | 005783 100161A | Hexagon head bolts full thread M10x16-8.8 | 4 | |
| 70 | 000702 060161A | Hexagon socket flat head screws M6x16-8.8 | 24 | |
| 71 | 000701 060701A | Hexagon socket head screw M6x70-8.8 | 1 | |
| 72 | 000096 100451A | Increase flat washer 10x45 | 4 | |
| 73 | 005783 100251A | Hexagon head bolts full thread M10x25-8.8 | 4 | |
| 74 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 2 | |
| 75 | 850-430004-000 | Copper bush 40x50x70 | 2 | |
| 76 | 138711 04005004 | Oil seal 40*50*4 | 2 | |
Working device
| Working device parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850T-431000-003 | Arm assembly | 1 | |
| 2 | 850T-434000-003 | Telescopic arm | 1 | |
| 3 | 850T-433000-003 | Crank arm assembly | 1 | |
| 4 | 850T-435000-003 | Front connecting rod assembly | 1 | |
| 5 | 850T-431100-000 | Slider component 1 | 6 | |
| 6 | 850T-432400-000 | Slider component | 8 | |
| 7 | 850T-432000-003 | Hook assembly | 1 | |
| 8 | 850T-431700-003 | Pin assembly | 1 | |
| 9 | 850T-430400-000 | Rear pin assembly of telescopic cylinder | 1 | |
| 10 | 850T-430100-003 | Swing arm pin assembly | 2 | |
| 11 | 850T-430300-003 | Connecting rod pin assembly | 1 | |
| 12 | 850T-431300-003 | Crank arm pin assembly | 1 | |
| 13 | 850T-434026-002 | Plate | 1 | |
| 14 | 850T-434027-003 | Length sensor welding seat | 1 | |
| 15 | 850T-434100-002 | Pipe bracket | 1 | |
| 16 | 850T-432205-000 | Pad | 1 | |
| 17 | 850T-432200-000 | Main arm lower plate assembly | 1 | |
| 18 | 850T-434028-002 | Plate 2 | 1 | |
| 19 | 850T-434200-002 | Pipe bracket 2 | 1 | |
| 20 | 850T-430500-001 | Front pin assembly of lifting cylinder | 1 | |
| 21 | 850T-431400-003 | Connecting rod pin assembly 2 | 1 | |
| 22 | 850T-436000-000 | Tubing support frame assembly | 2 | |
| 23 | 850T-430900-001 | Slave cylinder front pin | 1 | |
| 24 | 850T-430201-001 | Tilting cylinder pin | 1 | |
| 25 | 850T-430202-000 | Pin plate | 2 | |
| 26 | 850T-400020-000 | Roller | 1 | |
| 27 | 1130-400012-000 | Gasket | 3 | |
| 28 | 850T-400021-000 | Slider pad | 6 | |
| 29 | 000093 000121A | Standard elastic washer 12 | 3 | |
| 30 | 005783 120251A | Hexagon head bolts full thread M12x25-8.8 | 3 | |
| 31 | 000971 000101A | Flat Washers | 43 | |
| 32 | 000093 000101A | Standard elastic washer | 43 | |
| 33 | 005783 100251A | Hexagon head bolts full thread M10x25-8.8 | 35 | |
| 34 | 000971 000081A | Flat Washers | 19 | |
| 35 | 000093 000081A | Standard elastic washer | 23 | |
| 36 | 005783 080201A | Hexagon head bolts full thread M8x20-8.8 | 11 | |
| 37 | 005783 100401A | Hexagon head bolts full thread | 4 | |
| 38 | 006170 010001A | Hex nuts M10 | 8 | |
| 39 | 005783 100161A | Hexagon head bolts full thread M10x16-8.8 | 8 | |
| 40 | 005783 100451A | Hexagon head bolts full thread M10x45 | 4 | |
| 41 | 005783 080121A | Hexagon head bolts full thread M8x12-8.8 | 8 | |
| 42 | 005783 100751A | Hexagon head bolts full thread M10x75-8.8 | 1 | |
| 43 | 008891 010001A | Type 1 hexagon lock nut with non-metallic insert | 1 | |
| 44 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 4 | |
| 45 | 000701 080161A | Hexagon socket head screw M8x16-8.8 | 4 | |
| 46 | 850-430003-000 | Copper bush 40*50*42 | 6 | |
| 47 | 138711 04005004 | Oil seal 40*50*4 | 12 | |

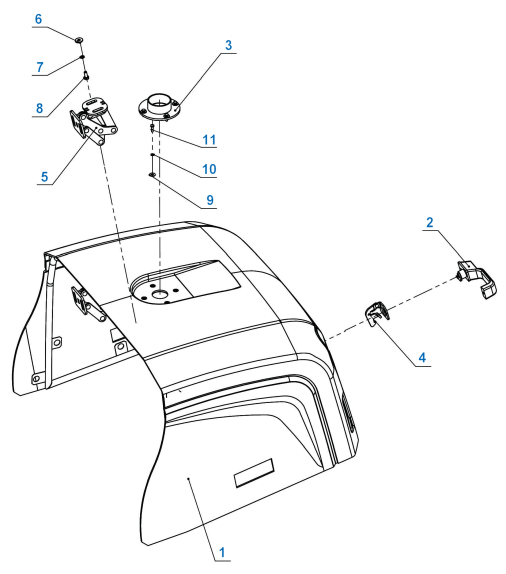

Rear bonnet assembly
| Rear bonnet assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-440500-G20 | Rear bonnet (2403 E5) | 1 | |
| 2 | 810-445600-538 | Handle | 1 | |
| 3 | 850-300100-000 | Air filter mount base assembly | 1 | |
| 4 | 850-440003-538 | Lock hook assembly | 1 | |
| 5 | 850-445200-100 | Bonnet hinge (850 Yanmar) | 2 | |
| 6 | 000096 080241A | Increase flat washer 8x24 | 4 | |
| 7 | 000093 000081A | Standard elastic washer 8 | 4 | |
| 8 | 005783 080201A | Hexagon head bolts full thread M8x20-8.8 | 4 | |
| 9 | 000096 060181A | Increase flat washer 6x18 | 4 | |
| 10 | 000093 000061A | Standard elastic washer 6 | 4 | |
| 11 | 005783 060201A | Hexagon head bolts full thread M6x20-8.8 | 4 | |

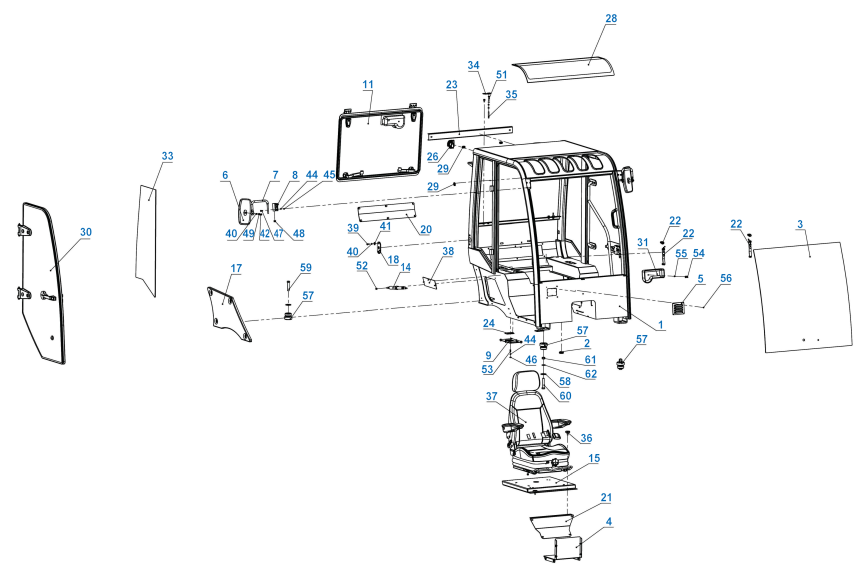

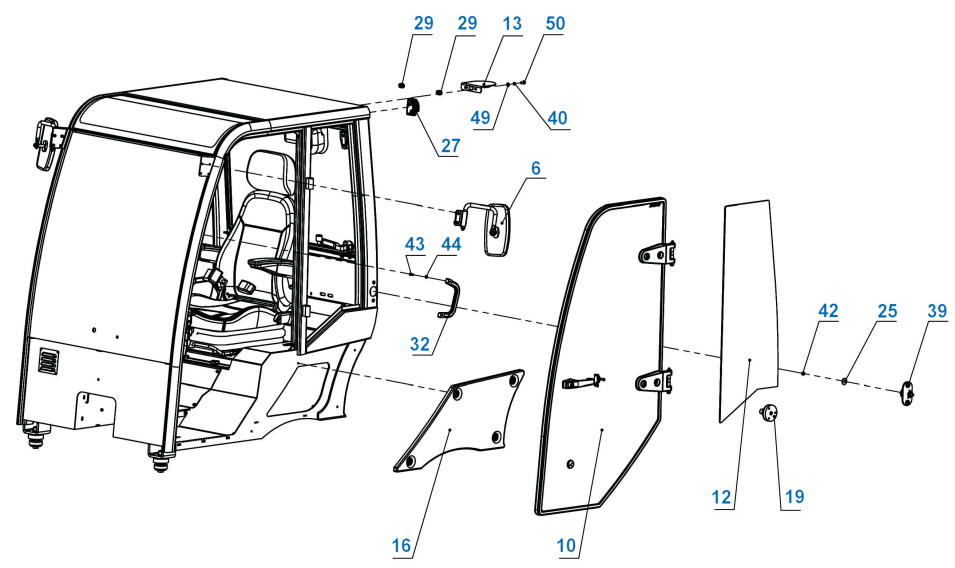

Cab assembly
| Cab assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-471000-300 | Safety canopy welding (cab) | 1 | |
| 2 | 1230-470010-000 | Outlet guard ring | 2 | |
| 3 | 750699000098 | Front windscreen Glass | 1 | |
| 4 | 850-476000-000 | Hood cover plate group | 1 | |
| 5 | HDY-A | Louvered air outlet | 1 | |
| 6 | 1130-440700-G00 | Reflector mirror | 2 | |
| 7 | 1230-470005-000 | Mirror bracket | 2 | |
| 8 | 1230-470006-000 | Support | 2 | |
| 9 | 850-400017-000 | Multi-way valve cover | 1 | |
| 10 | 850-472000-300 | Left door assembly | 1 | |
| 11 | 850-474000-300 | Rear window assembly | 1 | |
| 12 | 850-470002-300 | Rear side window | 1 | |
| 13 | 810-440012-000 | Warning light bracket | 1 | |
| 14 | 810-470400-G00 | Gas spring L=400 | 1 | |
| 15 | 850-475000-300 | Seat mounting plate welding | 1 | |
| 16 | 850-470005-300 | Left side panel of cab | 1 | |
| 17 | 850-470010-300 | Left side panel of cab | 1 | |
| 18 | 850-470017-300 | Lock mounting plate | 2 | |
| 19 | 1140-440600-003 | Door latch seat assembly | 2 | |
| 20 | 850-470011-300 | Seal plate | 1 | |
| 21 | 850-479000-300 | Baffle welding | 1 | |
| 22 | 850-478000-000 | Door lock installation kit | 1 | |
| 23 | 850-470013-300 | Top seal | 1 | |
| 24 | 850-470009-G00 | Hinge | 2 | |
| 25 | 850-470016-300 | Gasket | 2 | |
| 26 | K30000 540008 | Shaped square tube decorative cover (right) | 1 | |
| 27 | K30000 540004 | Special-shaped square tube decorative cover (left) | 1 | |
| 28 | 1230-470001-200 | Ceiling glass cover | 1 | |
| 29 | K30G00 540005 | Headlight output coil | 5 | |
| 30 | 850-473000-300 | Right door assembly | 1 | |
| 31 | 322040000079 | Wiper sheath | 1 | |
| 32 | 850-470018-300 | Handle | 1 | |
| 33 | 850-470001-300 | Rear side window | 1 | |
| 34 | 850-470019-300 | Window post mounting plate | 2 | |
| 35 | 850-470020-300 | Window buckle column | 2 | |
Cab assembly 2
| Cab assembly 2 parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 36 | 1130-440500-G00 | Wing bolt M8*20 | 2 | |
| 37 | 0018-520009-000 | SC25-Y seat | 1 | |
| 38 | 820-470006-300 | Seal plate | 1 | |
| 39 | 000702 080202A | Hexagon socket flat head screw M8x20-10.9 | 12 | |
| 40 | 000093 000081A | Standard elastic washer 8 | 26 | |
| 41 | 000096 080241A | Increase flat washer 8x24 | 12 | |
| 42 | 006170 008001A | Hex nut M8 | 8 | |
| 43 | 000702 060201A | Hexagon socket flat head screw M6x20-8.8 | 2 | |
| 44 | 000093 000061A | Standard elastic washer 6 | 19 | |
| 45 | 006170 006001A | Hex nut M6 | 8 | |
| 46 | 000971 000061A | Flat washer 6 | 17 | |
| 47 | 005783 060201A | Hexagon head bolts full thread M6x20-8.8 | 8 | |
| 48 | 008891 010001A | Type 1 hexagon lock nut with non-metallic insert M10 | 2 | |
| 49 | 000971 000081A | Flat washer 8 | 14 | |
| 50 | 005783 080161A | Hexagon head bolts full thread M8x16-8.8 | 2 | |
| 51 | 005783 080201A | Hexagon head bolts full thread M8x20-8.8 | 10 | |
| 52 | 008891 008001A | Type 1 hexagon lock nut with non-metallic insert M8 | 2 | |
| 53 | 000702 060161A | Hexagon socket flat head screw M6x16-8.8 | 9 | |
| 54 | 1140-474010-003 | Fixed plate | 1 | |
| 55 | 000702 060102A | Hexagon socket flat head screw M6x10-10.9 | 1 | |
| 56 | 000845 040101A | Cross recessed pan head tapping screws 4*10 | 4 | |
| 57 | 1130-440800-000 | Cab shock absorber assembly | 4 | |
| 58 | 000096 160501A | Increase flat washer 16x50 | 4 | |
| 59 | 005783 160801A | Hexagon head bolts full thread M16x80-8.8 | 2 | |
| 60 | 005783 160901A | Hexagon head bolts full thread M16x90-8.8 | 2 | |
| 61 | 006170 016001A | Hex nut M16 | 2 | |
| 62 | 000971 000161A | Flat washer 16 | 2 | |

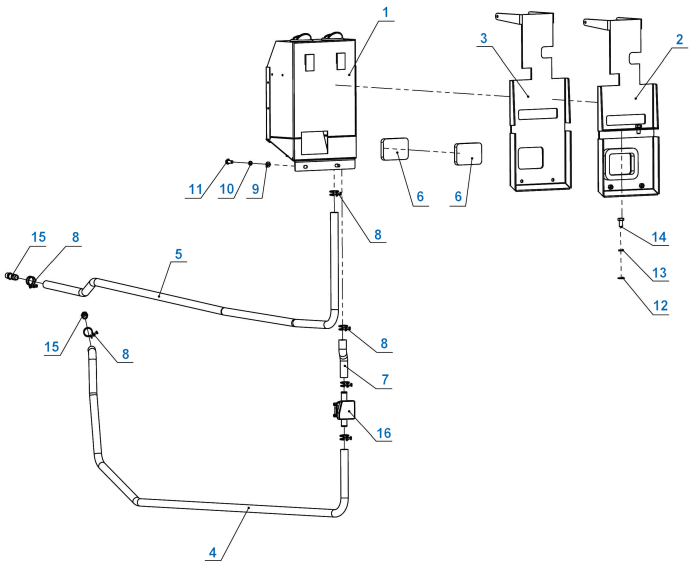

Heating system
| Heating system parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1230-700100-G00 | Heater | 1 | |
| 2 | 850T-477100-000 | Heater installation board assembly | 1 | |
| 3 | 850T-477101-001 | Heater installation plate | 1 | |
| 4 | 850-477003-000 | Water pipe 1 | 1 | |
| 5 | 850-477004-000 | Water pipe 2 | 1 | |
| 6 | 1230-470015-500 | Dust-proof sealing cotton | 2 | |
| 7 | 850-477005-000 | Water pipe 3 | 1 | |
| 8 | S00024 | Double steel wire clamp 24 | 6 | |
| 9 | 000971 000081A | Flat washer 8 | 2 | |
| 10 | 000093 000081A | Standard elastic washer 8 | 2 | |
| 11 | 005783 080201A | Hexagon head bolts full thread M8x20-8.8 | 2 | |
| 12 | 000971 000101A | Flat washer 10 | 2 | |
| 13 | 000093 000101A | Standard elastic washer 10 | 2 | |
| 14 | 005783 100201A | Hexagon head bolts full thread M10x20-8.8 | 2 | |
| 15 | 850-340006-100 | Hot water pipe joint | 2 | |
| 16 | T0.83.0113 | Heater water valve | 1 | |
Left door assembly
| Left door assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1230-473100-500 | Left door lock fixing plate assembly | 1 | |
| 2 | 1230-470602-G00 | Door lock handle | 1 | |
| 3 | 1230-472002-000 | Fixed plate rubber pad 1 | 2 | |
| 4 | 1230-470601-G00 | Left lock | 1 | |
| 5 | 1140-472004-003 | Fixed plate rubber pad 2 | 1 | |
| 6 | 1140-472005-003 | Cab hinge rubber pad | 2 | |
| 7 | 1140-470402-003 | Pin shaft | 2 | |
| 8 | K30G00 585202 | Glass fixing bolt | 1 | |
| 9 | K30G00 580302 | Fixed glass rubber pad | 2 | |
| 10 | 850-472001-300 | Side door glass | 1 | |
| 11 | 850-472004-200 | Left door sealing strip | 1 | |
| 12 | 850-472006-300 | Cab door hinge plate | 2 | |
| 13 | 850-472005-200 | Bush | 4 | |
| 14 | EPB3F-10.12-17 | Nylon sleeve | 4 | |
| 15 | 1140-472006-003 | Bush 2 | 1 | |
| 16 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 2 | |
| 17 | 000819 060251A | Cross recessed countersunk head screws M6x25-8.8 | 4 | |
| 18 | 000093 000061A | Standard elastic washer 6 | 4 | |
| 19 | 006170 006001A | Hex nut M6 | 4 | |
| 20 | 000819 060161A | Cross recessed countersunk head screws M6x16-8.8 | 2 | |
| 21 | 000819 060401A | Cross recessed countersunk head screws M6x40-8.8 | 3 | |
| 22 | 000702 120502A | Hexagon socket flat head screw M12x50-10.9 | 4 | |
| 23 | 000093 000121A | Standard elastic washer 12 | 4 | |
| 24 | 000923 012001A | Cap nut M12 | 4 | |
| 25 | 008891 010001A | Type 1 hexagon lock nut with non-metallic insert M10 | 2 | |

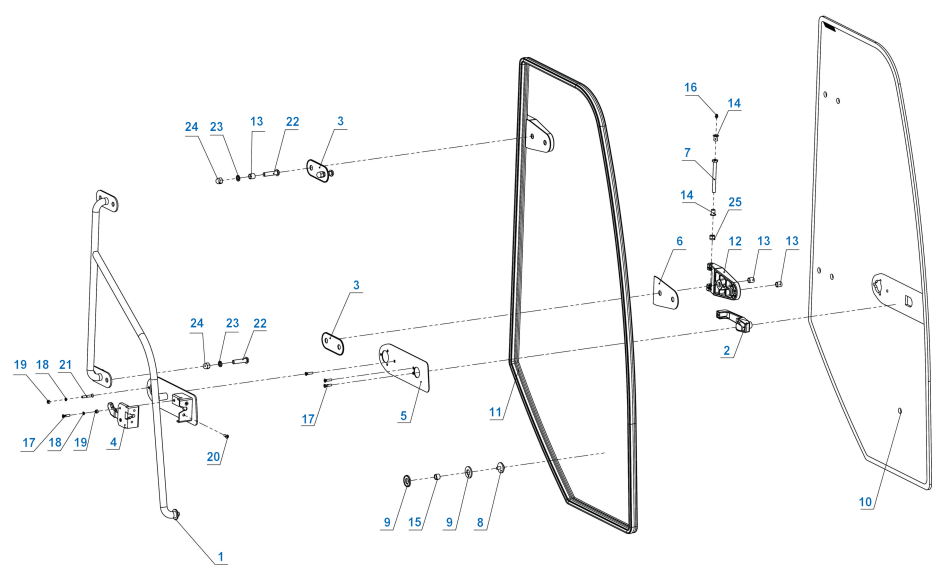

Right door assembly
| Right door assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1230-472100-500 | Right door fixing plate assembly | 1 | |
| 2 | 1230-470602-G00 | Door lock handle | 1 | |
| 3 | 1230-472002-000 | Fixed plate rubber pad 1 | 2 | |
| 4 | 1230-470603-G00 | Right lock | 1 | |
| 5 | 1140-472004-003 | Fixed plate rubber pad 2 | 1 | |
| 6 | 1140-472005-003 | Cab hinge rubber pad | 2 | |
| 7 | 1140-472006-003 | Bush 2 | 1 | |
| 8 | 1140-470402-003 | Pin shaft | 2 | |
| 9 | 850-473001-300 | Right door glass | 1 | |
| 10 | 850-472006-300 | Cab door hinge plate | 2 | |
| 11 | 850-473004-300 | Right door sealing strip | 1 | |
| 12 | 850-472005-200 | Bush | 4 | |
| 13 | EPB3F-10.12-17 | Nylon sleeve | 4 | |
| 14 | K30G00 585202 | Glass fixing bolt | 1 | |
| 15 | K30G00 580302 | Fixed glass rubber pad | 2 | |
| 16 | 000819 060161A | Cross recessed countersunk head screws M6x16-8.8 | 2 | |
| 17 | 000819 060251A | Cross recessed countersunk head screws M6x25-8.8 | 4 | |
| 18 | 000093 000061A | Standard elastic washer 6 | 4 | |
| 19 | 006170 006001A | Hex nut M6 | 4 | |
| 20 | 000819 060401A | Cross recessed countersunk head screws M6x40-8.8 | 3 | |
| 21 | 000702 120502A | Hexagon socket flat head screw M12x50-10.9 | 4 | |
| 22 | 000093 000121A | Standard elastic washer 12 | 4 | |
| 23 | 000923 012001A | Cap nut M12 | 4 | |
| 24 | 079401 006101A | Straight-through pressure oil cup M6x1.0 | 2 | |
| 25 | 008891 010001A | Type 1 hexagon lock nut with non-metallic insert M10 | 2 | |
Rear window assembly
| Rear window assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 875-474003-000 | Rear window sealing tape | 1 | |
| 2 | K30G00 585300 | Rear window hinge assembly | 2 | |
| 3 | 322040000078 | Wiper sheath | 1 | |
| 4 | 1140-474010-003 | Fixed plate | 1 | |
| 5 | 850-470004-300 | Rear window | 1 | |
| 6 | 850-474010-000 | Rear window handle assembly | 1 | |
| 7 | 000702 060161A | Hexagon socket flat head screw M6x16-8.8 | 11 | |
| 8 | 000093 000061A | Standard elastic washer 6 | 11 | |

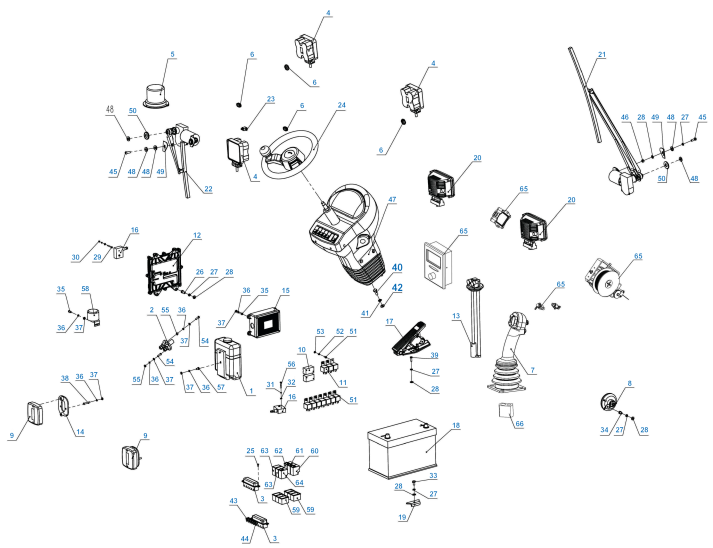

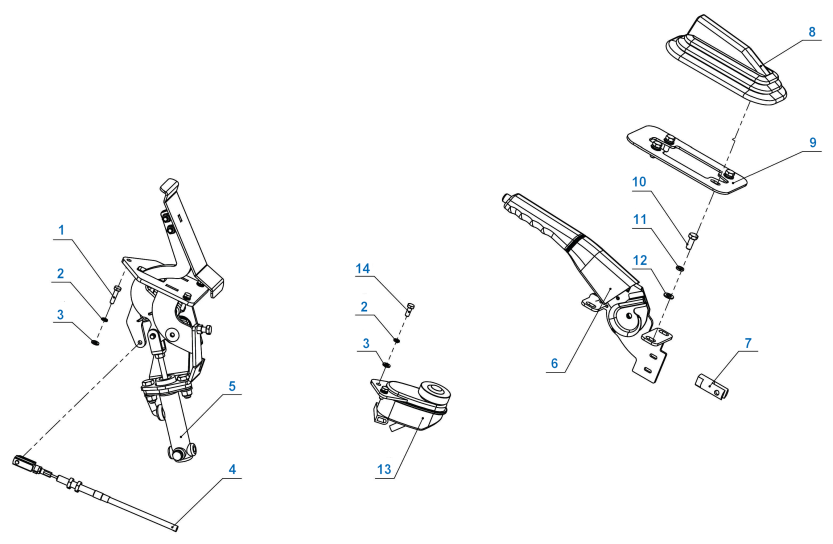

Operate system
Operate system installation assembly
| Operate system assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 005783 060251A | Hexagon head bolts full thread M6x25-8.8 | 3 | |
| 2 | 000093 000061A | Standard elastic washer 6 | 5 | |
| 3 | 000971 000061A | Flat washer 6 | 5 | |
| 4 | 850-100200-G00 | Fretting cable L=670 | 1 | |
| 5 | 1230-500300-500 | Foot brake (brake pump) | 1 | |
| 6 | 1130-100400-G10 | Hand brake assembly | 1 | |
| 7 | QC20-590001-010 | Parking brake connecting fork | 1 | |
| 8 | 1130-100005-000 | Hand brake dust cover | 1 | |
| 9 | 1130-100404-010 | Plate | 1 | |
| 10 | 005783 080201A | Hexagon head bolts full thread M8x20-8.8 | 4 | |
| 11 | 000093 000081A | Standard elastic washer 8 | 4 | |
| 12 | 000971 000081A | Flat washer 8 | 4 | |
| 13 | K30G00 610300 | Brake oil cup | 1 | |
| 14 | 005783 060161A | Hexagon head bolts full thread M6x16-8.8 | 2 | |
Foot brake assembly
| Foot brake assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1230-500310-500 | Foot brake fixing bracket assembly | 1 | |
| 2 | 1230-500320-500 | Brake bending plate assembly | 1 | |
| 3 | 1230-500330-500 | Connecting plate assembly | 1 | |
| 4 | 1230-500301-500 | Tappet | 1 | |
| 5 | 1230-500302-500 | Tappet seat | 1 | |
| 6 | K30000 611005 | Bushing 16160 | 2 | |
| 7 | 000896 000091A | Open retaining ring 9 | 2 | |
| 8 | 000882 080201A | Pin 8x20 | 1 | |
| 9 | 000091 030201A | Split pin 3*20 | 1 | |
| 10 | 1230-500305-G00 | Brake pedal return torsion spring | 1 | |
| 11 | 1230-500306-G00 | Connection plate return torsion spring | 1 | |
| 12 | 1230-500303-500 | Shaft sleeve | 1 | |
| 13 | K30000 615000 | Brake master cylinder assembly | 1 | |
| 14 | 000882 080251A | Pin B type 8*25 | 1 | |
| 15 | 1230-500340-501 | Pattern pedal assembly | 1 | |
| 16 | 000703 100702A | Hexagon socket countersunk head screw M10x70-10.9 | 1 | |
| 17 | 006184 008001A | Metal hex lock nut M8 | 3 | |
| 18 | 005783 100301A | Hexagon head bolts full thread M10x30-8.8 | 2 | |
| 19 | 000971 000101A | Flat washer 10 | 2 | |
| 20 | 006184 010001A | Metal hex lock nut M10 | 2 | |
| 21 | 005783 080251A | Hexagon head bolts full thread M8x25-8.8 | 2 | |
| 22 | 005783 080301A | Hexagon head bolts full thread M8x30-8.8 | 1 | |
| 23 | 006170 008001A | Hex nut M8 | 1 | |
| 24 | 000982 000010A | Combination gasket 10 | 1 | |
| 25 | 00WWDT M10X1 | Hexagonal external thread plug M10*1 | 1 | |
Hydraulic system

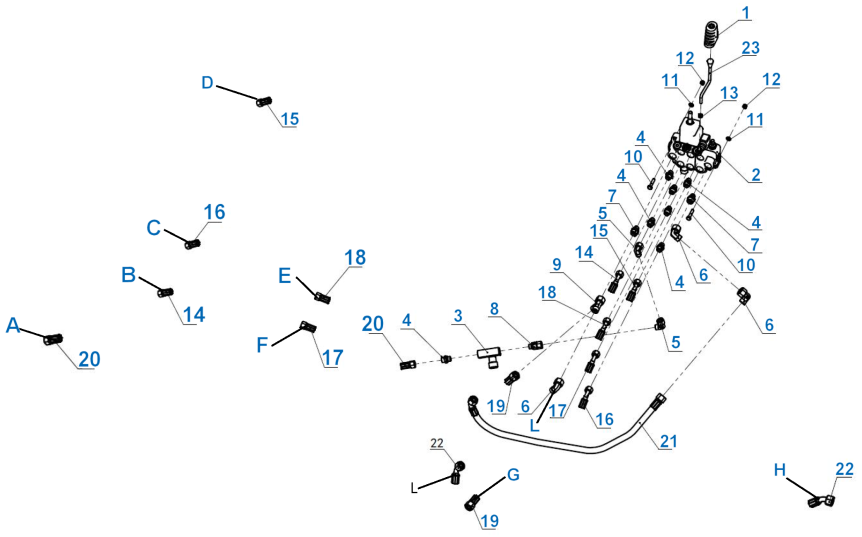

Hydraulic system 1
| Hydraulic system 1 parts list |
|
|||
| Item | Part number | Part name | Qty |
|
| 1 | 1230-600008-G00 | Small handle rubber cover | 1 | |
| 2 | 1130-600500-G01 | Bucher triple multi-way valve | 1 | |
| 3 | STU-0600 | Choke valve | 1 | |
| 4 | 0001CB 1806WDA | M18*1.5 to G3/8 straight joint | 7 | |
| 5 | 0002C9 0018WDA | M18x1.5 right angle joint for internal and external thread | 2 | |
| 6 | 0002C9 0022WDA | M22x1.5 right angle joint for internal and external thread | 3 | |
| 7 | 0001CB 2206WDA | M22*1.5 to G3/8 straight joint | 2 | |
| 8 | 0002BC 0618WDA | G3/8”to M18x1.5 (nut) straight joint | 1 | |
| 9 | 0000CC 002200A | M22*1.5 tee joint (nut) | 1 | |
| 10 | 005783 080401A | Hexagon head bolt with full thread M8x40-8.8 | 3 | |
| 11 | 000971 000081A | Flat washer 8 | 3 | |
| 12 | 006184 008001A | Metallic hexagon lock nut M8 | 3 | |
| 13 | 006170 008001A | Hexagon nut M8 | 1 | |
| 14 | 850T-612200-G00b | Rubber hose assy. -top end of lifting cylinder rod-main valve B3 port | 1 | |
| 15 | 850T-611800-G00b | Rubber hose assy. - main valve B1 port-outside plate joint on the right upper position of boom | 1 | |
| 16 | 850T-611900-G00b | Rubber hose assy. - main valve A1 port-outside plate joint on the left upper position of boom | 1 | |
| 17 | 850T-612500-G00b | Rubber hose assy. - main valve A2 port-left lower port of right six-way valve | 1 | |
| 18 | 850T-612400-G00b | Rubber hose assy. - right lower port of right six-way valve-main valve B2 | 1 | |
| 19 | 850T-616400-G00b | Rubber hose assy. - overflow valve T-multitandem valve T port | 1 | |
| 20 | 850T-612300-G00b | Rubber hose assy. - choke valve on A3 port of main valve-end of lifting cylinder | 1 | |
| 21 | 850-611200-G10 | Rubber hose assy. - steering gear EF-P port of main valve | 1 | |
| 22 | 850-610200-G10b | Rubber hose assy. - Tee joint-T port of multitandem valve | 1 | |
| 23 | 1130-600520-G00 | Small handle | 1 | |

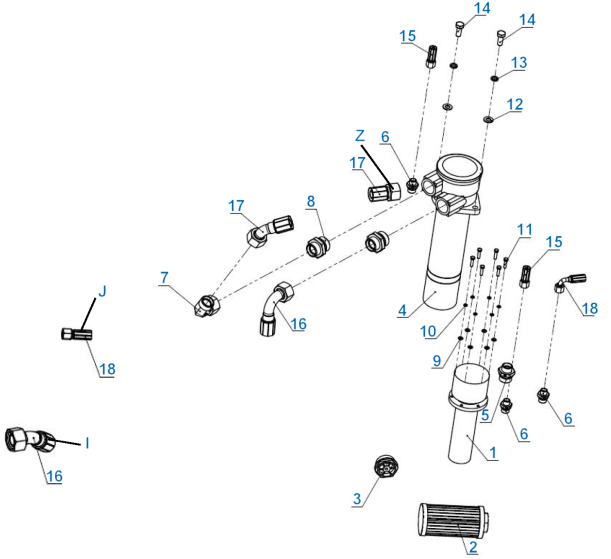

Hydraulic system 2
| Hydraulic system 2 parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1130-600800-G00 | Pressurized air filter | 1 | |
| 2 | 850-601100-000 | WU63*180 Gear pump oil filter element | 1 | |
| 3 | 850-400016-G00 | Oil window (oil level mirror) | 1 | |
| 4 | 850-600700-G00 | HTRF-B100*16 oil suction/return filter | 1 | |
| 5 | 0001CB 2212WDA | M22*1.5 to G3/4 straight joint | 1 | |
| 6 | 0001CB 1406WDA | M14*1.5 to G3/8 straight joint | 3 | |
| 7 | 0002C9 0030WDA | M30x1.5 right angle joint for internal and external thread | 1 | |
| 8 | 0001CB 3016WDA | M30*2 to G1 straight joint | 2 | |
| 9 | 000971 000051A | Flat washer 5 | 6 | |
| 10 | 000093 000051A | Standard type spring washer 5 | 6 | |
| 11 | 005783 050201A | Hexagon head bolt with full thread M5x20-8.8 | 6 | |
| 12 | 000971 000101A | Flat washer 10 | 2 | |
| 13 | 000093 000101A | Standard type spring washer 10 | 2 | |
| 14 | 005783 100251A | M10x25-8.8 Hexagon head bolt with full thread | 2 | |
| 15 | 850-612600-G10 | Rubber hose assy. (to connect left and right oil tank) | 1 | |
| 16 | 850-610300-G10 | Rubber hose assy. -oil suction port of main pump-outside of oil suction/return port | 1 | |
| 17 | 850-610100-G10 | Rubber hose assy. - Tee joint-outside of oil suction/return port | 1 | |
| 18 | 850-614300-G10 | Rubber hose assy. - Solenoid valve port 3 (side front)- left oil tank | 1 | |
Hydraulic system 3

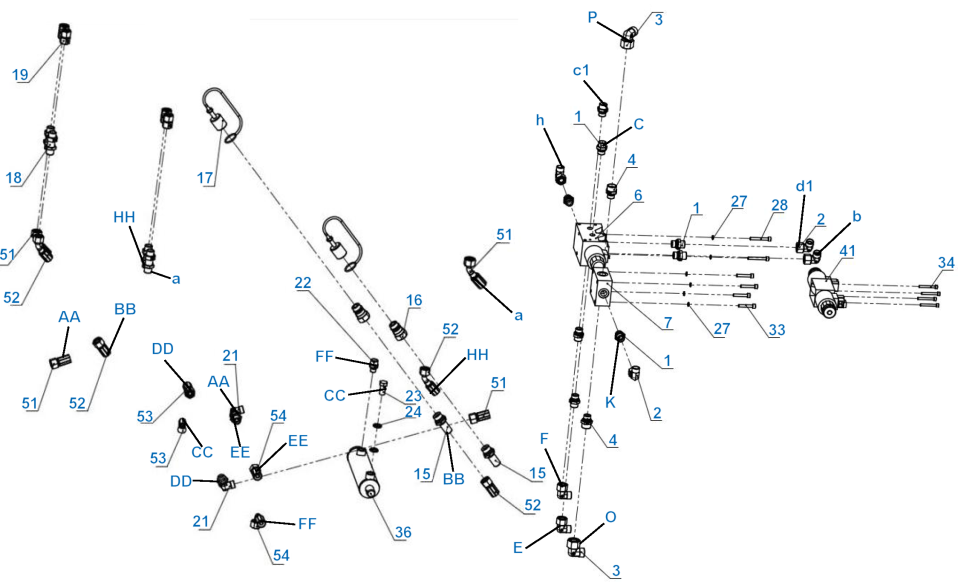

Hydraulic system 4
| Hydraulic system 4 parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 0001CB 1806WDA | M18*1.5 to G3/8straight joint | 16 | |
| 2 | 0002C9 0018WDA | M18x1.5 right angle joint for internal and external thread | 12 | |
| 3 | 0002C9 0022WDA | M22x1.5 right angle joint for internal and external thread | 2 | |
| 4 | 0001CB 2206WDA | M22*1.5 to G3/8straight joint | 2 | |
| 5 | 850T-400002-G00 | Balance valve of telescopic cylinder | 1 | |
| 6 | ZDPDCE50G038TA6-10 | Two position six way valve | 1 | |
| 7 | 850T-600001-G00 | Manifold block | 1 | |
| 8 | 850T-400001-G00 | Balance valve of lifting cylinder | 1 | |
| 9 | 850T-400025-000 | Attachment left oil hose | 2 | |
| 10 | 850T-400029-000 | Attachment right oil hose | 2 | |
| 11 | 850T-400028-003 | Attachment left oil hose | 2 | |
| 12 | 850T-400027-003 | Attachment right oil hose | 2 | |
| 13 | 850T-400034-000 | Oil hose of tilt cylinder | 2 | |
| 14 | 850T-431800-G01 | Grease tube assembly of 850T tilt cylinder | 1 | |
| 15 | 0000F3 18G1-2A | M18*1.5 to G1/2 plate joint | 2 | |
| 16 | LSQ-S1-04PF-G1-2 | Fast joint LSQ-S1-04PF (pin) | 2 | |
| 17 | LSQ-S1-PF-G1-2 | Red dust cap (pin) | 2 | |
| 18 | 006CLN 001800A | M18*1.5 straight plate joint with nut | 12 | |
| 19 | 00003C 001800A | M18*1.5 straight joint with nuts on both ends | 10 | |
| 20 | 0000CC 001800A | M18*1.5 tee joint with nut | 2 | |
| 21 | 069CLN 001800A | M18*1.5 right angle plate joint | 2 | |
| 22 | 0001CB 1804WDA | M18*1.5 to G1/4 straight joint | 1 | |
| 23 | 00720B 000004A | G1-4 Hinge bolt | 1 | |
| 24 | 000982 000014A | Combined sealing washer 14 | 2 | |
| 25 | 0001CM 0014WDA | M14*1.5 to M14*1.5 plane straight joint | 1 | |
| 26 | SHTPG1-213.5 | Double pipe clamp 13.5 | 10 | |
| 27 | 000093 000061A | Standard type spring washer 6 | 6 | |
| 28 | 000701 060451A | M6×45-8.8 hexagon socket head cap screws | 2 | |
| 29 | 006171 010101A | M10×1 Hexagon nut with fine thread | 1 | |
| 30 | 079401 006101A | Straight-through oil injection cup M6x1.0 | 1 | |
| 31 | 000093 000081A | Standard type spring washer 8 | 8 | |
| 32 | 000701 080451A | Hexagon socket head cap screws M8×45-8.8 | 8 | |
| 33 | 000701 060351A | Hexagon socket head cap screws M6×35-8.8 | 4 | |
| 34 | 000701 050401A | Hexagon socket head cap screws M5×40-8.8 | 4 | |
| 35 | SHTPG1-321.3 | Double pipe clamp 21.3 | 1 | |
| 36 | 850T-441000-G00 | Locking cylinder (The Swedish standard) | 1 | |
| 37 | 850T-438000-G00 | Telescoping cylinder | 1 | |
| 38 | 850T-437000-G03 | Tilt cylinder | 1 | |
| 39 | 850T-436000-G03 | Lifting cylinder | 1 | |
| 40 | 850T-439000-G03 | Slave cylinder | 1 | |
| 41 | RSD 3-8W-AD1 S-10 | Three-position four-way solenoid valve | 1 | |
| 42 | 850T-615200-G00 | Rubber hose assy. -left A port of left valve-the end of telescoping cylinder | 1 | |
| 43 | 850T-615300-G00 | Rubber hose assy. -right B port of right valve-the rod end of telescoping cylinder | 1 | |
| 44 | 850T-613700-G00 | Rubber hose assy. - C port of right six-way valve-the pistion end of tilt cylinder | 1 | |
| 45 | 850T-613800-G00 | Rubber hose assy. - the rod end of tilt cylinder-D port of right six-way valve | 1 | |
| 46 | 850T-615400-G00 | Rubber hose assy. - lower tee joint of boom-the pistion end of slave cylinder | 1 | |
| 47 | 850T-615500-G00 | Rubber hose assy. - the rod end of slave cylinder-lower tee joint of boom | 1 | |
| 48 | 850T-615700-G00 | Rubber hose assy.- A port of right six way valve-inside plate joint on left upper position of boom | 1 | |
| 49 | 850T-615600-G00 | Rubber hose assy.- B port of right six way valve-inside plate joint on right upper position of boom | 1 | |
| 50 | 850T-615800-G00 | Rubber hose assy.- upper steel pipe of boom- upper steel pipe of auxiliary boom | 4 | |
| 51 | 850T-613900-G00 | Rubber hose assy.- outside plate joint of front boom-carriage | 2 | |
| 52 | 850T-613900-G00b | Rubber hose assy.- inside plate joint of front boom-fast joint | 2 | |
| 53 | 850T-613200-G00 | Rubber hose assy. - left locking plate joint-rod oil port of locking cylinder | 1 | |
| 54 | 850T-613300-G00 | Rubber hose assy. - right locking plate joint-rod oil port of locking cylinder | 1 | |
| 55 | 850T-613400-G00 | Rubber hose assy.- lower steel pipe of boom- rear plate of auxiliary boom | 2 | |
| 56 | 850T-614800-G00 | Rubber hose assy.- rear plate of auxiliary boom - tilt cylinder | 2 | |

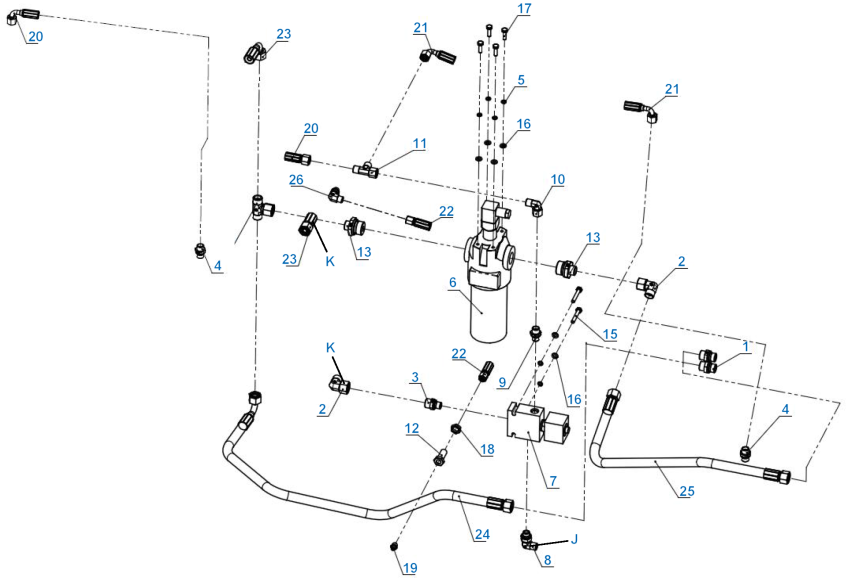

Hydraulic system 5
| Hydraulic system 5 parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 0001CB 1806WDA | M18*1.5 to G3/8 straight joint | 2 | |
| 2 | 0002C9 0018WDA | M18x1.5 right angle joint for internal and external thread | 2 | |
| 3 | 0001CB 1804WDA | M18*1.5 to G1/4 straight joint | 1 | |
| 4 | 0001CM 0014WDA | M14*1.5 to M14*1.5 plane straight joint | 2 | |
| 5 | 000093 000061A | Standard type spring washer 6 | 6 | |
| 6 | HPLF-C110X5P | Oil filter | 1 | |
| 7 | DHF08S-230-00 | Two position three way valve | 1 | |
| 8 | 001CG9 14040GA | M14x1.5 to G1/4 right angle adjustable joint | 1 | |
| 9 | 0001CB 1404WDA | M14*1.5 to G1/4 straight joint | 1 | |
| 10 | 0002C9 0014WDA | M14x1.5 right angle joint for internal and external thread | 1 | |
| 11 | 0000CC 001400A | M14*1.5 tee joint with nut | 1 | |
| 12 | 303050000044 | Oil nozzle transition connector | 1 | |
| 13 | 0001CB 1812WDA | M18*1.5 to G3/4 straight joint | 2 | |
| 14 | 0000BC 001800A | M18*1.5 tee joint nut | 1 | |
| 15 | 005783 060401A | Hexagon head bolt with full thread M6x40-8.8 | 2 | |
| 16 | 000971 000061A | Flat washer 6 | 6 | |
| 17 | 005783 060201A | Hexagon head bolt with full thread M6x20-8.8 | 4 | |
| 18 | 061721 012001A | M12 hexagon thin nut M12 | 1 | |
| 19 | 079401 010101A | Oil cup M10x1 | 1 | |
| 20 | 850-614100-G00 | Rubber hose assy. - front axle-tee joint | 1 | |
| 21 | 850-614200-G00 | Rubber hose (rear axle-tee joint) | 1 | |
| 22 | 850-615000-G00 | Rubber hose assy. - Grease tube of rear ball joint | 1 | |
| 23 | 850-614400-G00 | Rubber hose assy.- solenoid valve 1 port -upper port of oil filter tee joint | 1 | |
| 24 | 850-614500-G00 | Rubber hose (lower port of oil filter tee joint-plunger pump P1) | 1 | |
| 25 | 850-614600-G00 | Rubber hose-oil return port of oil filter-plunger pump P2 (upper oil return port) | 1 | |
| 26 | 001CH9 1210OGA | M12x1.5 to M10x1 right angle adjustable joint | 1 | |

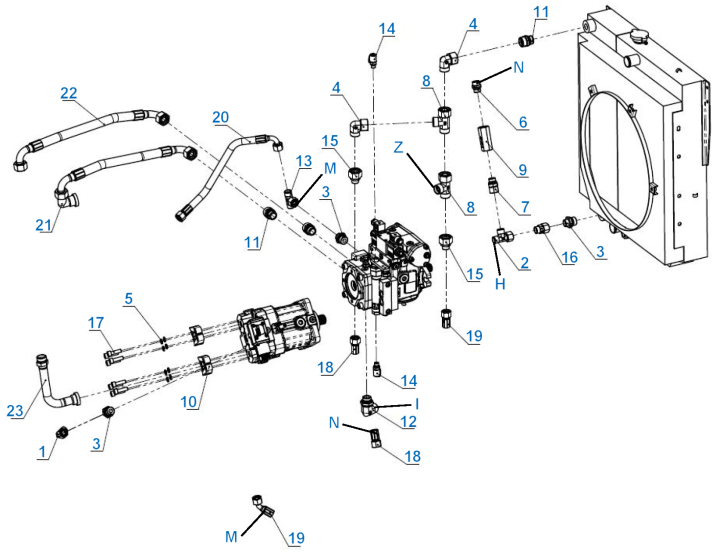

Hydraulic system 6
| Hydraulic system 6 parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 0001CB 1806WDA | M18*1.5 to G3/8 straight joint | 2 | |
| 2 | 0002C9 0022WDA | M22x1.5 right angle joint for internal and external thread | 3 | |
| 3 | 0000CC 002200A | M22*1.5 tee joint (nut) | 2 | |
| 4 | 0001CB 2212WDA | M22*1.5 to G3/4 straight joint | 1 | |
| 5 | 0002C9 0030WDA | M30x1.5 right angle joint for internal and external thread | 5 | |
| 6 | 0001CB 3016WDA | M30*2 to G1 straight joint | 1 | |
| 7 | 000971 000101A | Flat washer 10 | 4 | |
| 8 | 000093 000101A | Standard type spring washer 10 | 4 | |
| 9 | 005783 100251A | Hexagon head bolt with full thread M10×25-8.8 | 4 | |
| 10 | 000093 000061A | Standard type spring washer 6 | 16 | |
| 11 | 000971 000061A | Flat washer 6 | 16 | |
| 12 | HDKR-YLF-10-17 | Overflow valve | 1 | |
| 13 | 0001CB 2208WDA | M22*1.5 to G1/2 straight joint | 2 | |
| 14 | 0002BC 0822WDA | M22x1.5 (nut) straight joint | 1 | |
| 15 | 034521 200265A | O ring 20*2.65 | 2 | |
| 16 | 034521 250265A | O ring 25*2.65 | 2 | |
| 17 | 005783 060251A | Hexagon head bolt with full thread M6x25-8.8 | 16 | |
| 18 | 850T-616200-G00 | Rubber hose assy.- overflow valve P-P port of left electromagnetic valve | 1 | |
| 19 | 850T-616300-G00 | Rubber hose assy.- overflow valve T-T port of left electromagnetic valve | 1 | |
| 20 | 850-611300-G10 | Rubber hose assy.- steering gear T-L1 port of plunger pump (left) | 1 | |
| 21 | 850-611600-G10 | Rubber (steering gear A-plunger end of steering cylinder) | 1 | |
| 22 | 850-611700-G10 | Rubber hose assy.-steering cylinder-steering gear B port | 1 | |
| 23 | 850-611400-G10b | Rubber hose assy.- Gear pump outlet-P port of steering gear | 1 | |
| 24 | 850-611500-G20b | Rubber hose assy.- Gear pump inlet-rear lower port of left oil tank | 1 | |
| 25 | 850T-616100-G20 | Rubber hose assy.- oil suction port of gear pump 2-lower oil suction port of left oil tank | 1 | |
| 26 | 850-202000-G00 | Steering gear | 1 | |
| 27 | 001CG9 1806OGA | M18x1.5 to G3/8 right angle adjustable joint | 2 | |
| 28 | 000982 00G1-2A | Combined sealing washer | 2 | |
| 29 | 00720B 000008A | G1/2 Hinge bolt | 1 | |
| 30 | 00720B 000006A | G3/8 Hinge bolt | 1 | |
| 31 | 000982 00G3-8A | Combined sealing washer G3-8 | 2 | |
| 32 | 0000CC 003000A | M30*2 tee joint (nut) | 1 | |
| 33 | 1130-600201-000 | Gear pump oil-out joint | 2 | |
| 34 | 1130-600101-000 | Gear pump oil-in joint | 2 | |
| 35 | 00STCY 16M22A | M16*1.5 M22 Tee joint (nut) Intermediate pressure joint | 1 | |
Hydraulic system 7
| Hydraulic system 7 parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 0002C9 0022WDA | Right angle joint for internal and external thread M22x1.5 | 1 | |
| 2 | 0000CC 002200A | M22*1.5 tee joint (nut) | 1 | |
| 3 | 0001CB 2212WDA | M22*1.5 to G3/4 straight joint | 3 | |
| 4 | 0002C9 0030WDA | M30x1.5 right angle joint for internal and external thread | 2 | |
| 5 | 000093 000101A | Standard type spring washer 10 | 8 | |
| 6 | 0001CB 2208WDA | M22*1.5 to G1/2 straight joint | 1 | |
| 7 | 0002BC 0822WDA | G1/2” to M22x1.5 (nut) straight joint | 1 | |
| 8 | 0000CC 003000A | M30*2 tee joint (nut) | 2 | |
| 9 | VU-12-G1-2-0.4 | Straightway check valve | 1 | |
| 10 | 0000FS 001200A | Heavy duty open flange press plate | 4 | |
| 11 | 0001CB 3012WDA | M30*2 to G3/4straight joint | 4 | |
| 12 | 001CG9 30120GA | M30*2 to G3/4 right angle adjustable joint | 1 | |
| 13 | 0000BC 002200A | M22*1.5 tee joint (nut) | 1 | |
| 14 | 0000CY 1604EDA | Pressure joint | 2 | |
| 15 | 00002C 2230WDA | M22x1.5 to M30x2 (nut) straight joint | 2 | |
| 16 | 00002C 0022WDA | M22x1.5 to M22x1.5 (nut) straight joint | 1 | |
| 17 | 000701 100351A | Hexagon socket head cap screws M10x35-8.8 | 8 | |
| 18 | 830-610400-G10 | Rubber hose assy.-oil return check valve-upper tee joint | 1 | |
| 19 | 850-612800-G10 | Rubber hose -L2 Port of plunger pump-upper tee joint of water tank- | 1 | |
| 20 | 850-612700-G10 | Rubber hose-L2 Port of plunger pump-L2 port of plunger motor | 1 | |
| 21 | 850-610800-G00 | Rubber hose assy.- lower position of main pump-outside of motor | 1 | |
| 22 | 850-610600-G00 | Rubber hose assy.- upper position of main pump-inside of motor | 1 | |
| 23 | 850-600600-000 | Steel pipe assy. of travelling motor | 1 | |
Electric system
Electric system assembly chart
| Electric system assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850-701600-G00 | Wash bottle | 1 | |
| 2 | 1130-701900-G00 | Main power switch | 1 | |
| 3 | 1130-701800-G00 | 6-way fuse box | 2 | |
| 4 | 1130-921000-000 | Working light | 3 | |
| 5 | 1130-922000-000 | Warning light | 1 | |
| 6 | K30G00 540005 | Headlight out of coil | 5 | |
| 7 | 850T-720000-G00 | Operating handle assy | 1 | |
| 8 | K30G00 800050 | Horn | 1 | |
| 9 | 810E-700100-000 | LED tail lamp | 2 | |
| 10 | 1130-701200-G00 | Insert plug fuse seat | 2 | |
| 11 | 850-701700-G00 | Relay (E 5 engine) | 14 | |
| 12 | 1H08660551 | V2403 ECU | 1 | |
| 13 | 850T-701500-G00 | Oil temperature sensor | 1 | |
| 14 | 810E-700020-000 | Taillight base welded | 2 | |
| 15 | 1030-700900-G10 | Control box | 1 | |
| 16 | E25G00 800900 | Microswitch | 2 | |
| 17 | 830-702600-200 | Electronic throttle | 1 | |
| 18 | 830-703000-G10 | Battery 6-QW-80 | 1 | |
| 19 | 1130-700104-001 | Battery fixed pressing plate | 1 | |
| 20 | 1130-504500-000 | Headlamp | 2 | |
| 21 | 850-700600-000 | Front wiper wash assy | 1 | |
| 22 | 850-700601-000 | Rear wiper wash assy | 1 | |
| 23 | 850-702000-000 | Wiper housing switch | 1 | |
| 24 | 850-710009-G10 | Steering wheel | 1 | |
| 25 | 000819 040101A | Screw M4x10-8.8 | 8 | |
| 26 | 005783 080201A | Hexagon head bolt full thread M8x20-8.8 | 4 | |
| 27 | 000093 000081A | Standard elastic washer 8 | 9 | |
| 28 | 000971 000081A | Flat washer 8 | 10 | |
| 29 | 000818 040351A | Slotted pan head screw M4x35-8.8 | 2 | |
| 30 | 006170 004001A | Hexagon nut M4 | 2 | |
| 31 | 000093 000041A | Standard elastic washer 4 | 4 | |
| 32 | 000971 000041A | Flat washer 4 | 4 | |
| 33 | 005783 080161A | Hexagon head bolt full thread M8x16-8.8 | 1 | |
| 34 | 005783 080121A | Hexagon head bolt full thread M8x12-8.8 | 1 | |
| 35 | 000702 060161A | Hexagon socket flat round head screw M6x16-8.8 | 5 | |
| 36 | 000093 000061A | Standard elastic washer 6 | 13 | |
| 37 | 000971 000061A | Flat washer 6 | 13 | |
| 38 | 000702 060351A | Hexagon socket flat round head screw M6x35-8.8 | 4 | |
| 39 | 005783 060201A | Hexagon head bolt full thread M6×20-8.8 | 2 | |
| 40 | 005783 100251A | Hexagon head bolt full thread M10×25-8.8 | 4 | |
| 41 | 000093 000101A | Standard elastic washer 10 | 4 | |
| 42 | 000971 000101A | Flat washer 10 | 4 | |
| 43 | FU-10A | Fuse 10A | 4 | |
| 44 | FU-5A | Fuse 5A | 8 | |
| 45 | 000702 080252A | Hexagon socket flat round head screw M8x25-10.9 | 2 | |
| 46 | 006184 008001A | Hexagon metal lock nut M8 | 2 | |
| 47 | 850-710000-200 | Kubota E5 instrument assy | 1 | |
| 48 | 1230-472003-000 | Rubber pad | 5 | |
| 49 | 810-474008-100 | Rubber wiper pad | 2 | |
| 50 | K30G00 580302 | Fixed glass rubber pad | 2 | |
| 51 | 000818 050121A | Cross recessed pan head screws M5x12-8.8 | 10 | |
| 52 | 000093 000051A | Standard elastic washer 5 | 10 | |
| 53 | 000971 000051A | Flat washer 5 | 10 | |
| 54 | 000702 060201A | Hexagon socket flat round head screw M6x20-8.8 | 2 | |
| 55 | 006170 006001A | Hexagon nut M6 | 2 | |
| 56 | 000818 040301A | Slotted pan head screw M4x30-8.8 | 2 | |
| 57 | 000818 060121A | Cross recessed pan head screws M6x12-8.8 | 2 | |
| 58 | E25G00-800700 | Buzzer | 1 | |
| 59 | 850-701900-G00 | Triple group frame of rocker switch | 2 | |
| 60 | 1230-701903-G00 | Wiper switch | 1 | |
| 61 | 1230-701902-G00 | Watering can switch | 1 | |
| 62 | 850-701901-G00 | Differential lock switch | 1 | |
| 63 | 1230-700023-G00 | Switch box blank panel | 2 | |
| 64 | 1130-710018-G00 | Double trip switch | 1 | |
| 65 | 850T-702700-000 | Hersman telescopic loader control system | 1 | |
| 66 | 1140-440013-003 | Connecting plate (cabin) | 1 | |

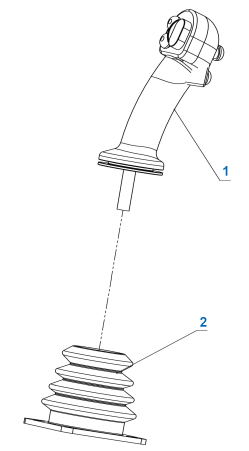

Operating handle assembly
| Operating handling assembly parts list | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 850T-720210-G00 | Handle | 1 | |
| 2 | 850T-720201-G00 | Handle cover | 1 | |

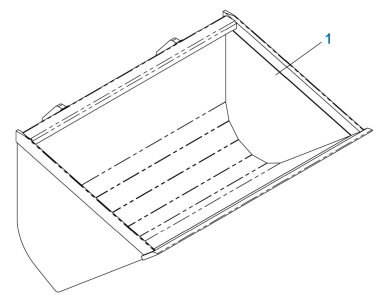

Attachment
| Attachment | ||||
| Item | Part number | Part name | Qty | Remark |
| 1 | 1230-800000-551 | Bucket assembly | 1 | |
